Homework 5, Problem 1: The Game of Life
[50 points; individual or pair]



Submission: Submit your hw5pr1.py file to Canvas

The Game of Life is a cellular automaton invented by John Conway, a mathematician from Cambridge. The game of life is not so much a "game" in the traditional sense, but rather a process that transitions over time according to a few simple rules. The process is set up as a grid of cells, each of which is "alive" or "dead" at a given point in time. At each time step, the cells live or die according to the following rules:

  1. A cell that has fewer than two live neighbors dies (because of loneliness)
  2. A cell that has more than 3 live neighbors dies (because of over-crowding)
  3. A cell that is dead and has exactly 3 live neighbors comes to life
  4. All other cells maintain their state

Although these rules seem simple, they give rise to complex and interesting patterns. For more information and a number of interesting patterns see http://en.wikipedia.org/wiki/Conway's_Game_of_Life.

In this lab, you will implement a Python program to run the Game of Life.



Getting started with life!

As always, it is important to break the problem down into pieces and develop the program in stages so that others can understand the code and so that you can ensure that each piece is correct before building on top of it. We will break this problem down into the following steps:

  1. Creating a 2d array of cells
  2. Displaying the board (in various colors) and updating it with new data
  3. Allowing the user to change the state of the cells
  4. Implementing the update rules for the "Game of Life"
  5. (Optionally) Running and stopping the simulation

Before you start, you need to develop a scheme for keeping track of your data. Basically, the data you need to maintain are the states of all of the cells in the board. We suggest that you keep track of this data in a 2D array of integer values, where 0 represents an empty (off) cell and 1 represents a live (on) cell.



Creating a 2d board of cells

First, in your hw5pr1.py file, copy and test this example function:

def createOneRow( n ):

""" returns rows of n zeros...  You might use

this as the INNER loop in createBoard """

R = []

for col in range(n):

R += [0]

return R

This function offers a starting-point for creating one-dimensional lists -- but the same idea applies for building nested list structures arbitrarily deep.

Building on this example, write a function named createBoard( width, height ) that creates and returns a new 2D list of height rows and width columns in which all of the data elements are 0 (no graphics quite yet, just a Python list!). For example,

>>> createBoard( 3, 3 )

[ [0,0,0], [0,0,0], [0,0,0] ]

One approach to createBoard is to use a pair of nested loops: the outer one for the rows, and the inner one for the columns (note that you can use createRow for the inner loop. Then, the overall 2d array would accumulate those rows one at a time (within the loop) until it was the correct size. Note that just as

R += [0]

adds a zero to the end of the list (row) R, by the same token,

B += [ [0,0,0] ]

adds a row of three zeros to the end of list (board) B. When you write createBoard, that row will have a name (maybe R), rather than hand-typed values.



Displaying your 2d board of cells

You no doubt noticed that when Python prints a 2d list, it blithely ignores its 2d structure and flattens it out into one line (perhaps wrapping, if needed). In order to display your board in 2d using the csplot graphics module, you will need to download csplot.py from this link. =csplot.py= has changed from previous weeks so be sure to delete any old versions you have and then re-download it.

A convenient place to download csplot.py is to your desktop. Though the desktop is easy, any folder you choose is OK. Wherever you put it, you will need your hw5pr1.py file to be in the same folder as csplot.py.

Next, in order to use the functions in csplot, include the following line at the top of your hw5pr1.py file:

import csplot

Now, once you load your hw5pr1.py file into the Python shell, you should be able to create and display a 2d array with

>>> B = createBoard(10,10)

>>> csplot.show(B)



You will see a rather desolate-looking board:

Recall from a few weeks ago that this CS plot window will not close unless you use the done() command. To refresh the window you can type:

>>> csplot.update()

To close the window, type:

>>> csplot.done()

and then click the red X in the corner of the cs plot window.



Adding patterns to your 2d board of cells

In order to get used to using 2d arrays of data and writing functions that modify arrays rather than return them, copy this function named update1( B ) into your file:

def update1( B ):

""" Takes an empty board as input and modifies that board

so that it has a diagonal strip of "on" cells

"""

width = len(B[0])

height = len(B)



for row in range(height):

for col in range(width):

if row == col:

B[row][col] = 1

else:

B[row][col] = 0     # else not needed here, but OK



This function, update1 takes as input a blank 2d array of data, B. Then, it changes some of that data so that B becomes a board whose cells are empty except for the diagonal where row == col. Note that it does not return anything. Also note that we determine the height and width of the board directly from the board itself.

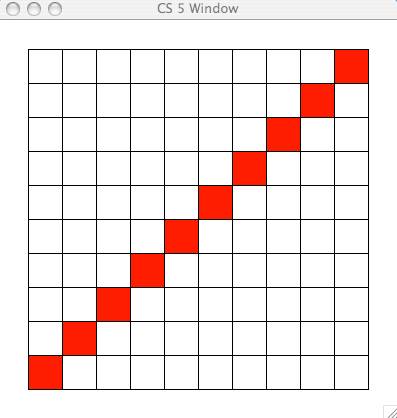

Try displaying the result with

>>> B = createBoard(10,10)

>>> update1(B)

>>> csplot.show(B)



Warning!! The coordinate system of Python's printing and csplot's graphics system have the rows going in opposite directions. That is, when you print a 2d array (list of lists), the zeroth row is at the top, then the first row is next, and so on. However, csplot uses mathematical coordinates (rows increase along the y-axis and columns increase along the x-axis), so that the zeroth row is at the bottom, the first row is the second-from-bottom, and so on. Thus, when you display this new board, you should get a window that looks something like this:

Based on the example of update1, write a variation named update2( B ) which returns a board of all live cells, except for a one-cell-wide border of empty cells around the entire edge of the 2d array. Copy-and-paste is your friend! For example, when you run

>>> B = createBoard(10,10)

>>> update2(B)

>>> csplot.show(B)

you should get a window that looks something like this:

Next, create a function named updateRandom( B ) which takes a board B and mutates that board to contain one-cell-wide border of empty cells around the entire edge of the 2d array, just as in the previous case. However, each of the inner cells should be randomly chosen to be live or empty. Recall that random.choice( [0,1] ) will help here -- and that you will need to include the line import random somewhere near the top of your file.

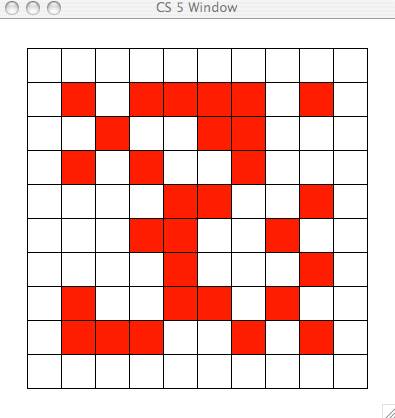

Here is one possible such board:

A note on changing cells' colors

You can choose different colors by using a second input called a dictionary to the csplot.show command. For example,

B = createBoard(10, 10)

updateRandom(B)

d = {0:'green', 1:'blue'} # dictionary of int/color pairs

csplot.show(B,d) # optional second argument

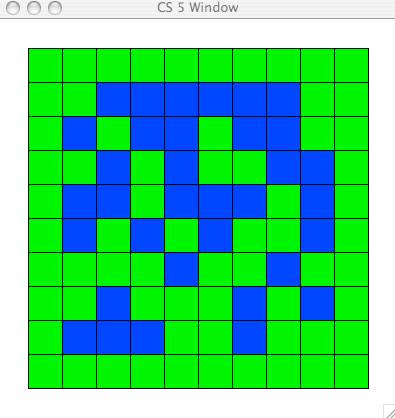

will produce something similar in spirit to this:

Creating a new "board" from an old one...

None of the update functions so far depends on a previous "generation" of cells. For our life game we need to update the cells from one generation to modify a NEW board in the subsequent generation.

Write a function updateReversed( oldB, newB ) that takes an old board and a blank new board and modifies the newB such that each cell is the "opposite" of oldB's cells. That is, where oldB[row][col] is a 1, the new board's value will be a zero - and vice versa. This function should not return anything.

But, keep the outermost edge of cells empty, regardless of their state in the original board - this will help when implementing Life, because it will prevent out-of-bounds errors.

Recall that you can obtain the width and height from oldB:

width = len(oldB[0])

height = len(oldB)



Try out your updateReversed by displaying an example:

>>> B = createBoard(10,10)

>>> updateRandom( B )

>>> csplot.show( B )

>>> newB = createBoard( 10, 10 )  # makes newB reference a NEW board...

>>> updateReversed(B, newB)

>>> csplot.show( newB )



It's important that you first make a NEW array of data to pass into the updateReversed function. You might point out that it would be possible to simply change the input oldB, rather than have two inputs - this is true for the reversed-board example, but not true when implementing the rules of the Game of Life. There, you will need new data on which to place each subsequent generation.



Writing a Life-updating loop

To start updating one generation of cells to the next, read over the following skeleton and then adapt - or simply copy - it into your hw5pr1.py file:

import time



def life( width, height ):

""" will become John Conway's Game of Life... """

B = createBoard( width, height )

updateRandom( B )



while True: # run forever

csplot.show(B) # show current B

time.sleep(0.25) # pause a bit

oldB = B #  just a reminder for us humans

B = createBoard(width, height) #  creates a new board

updateReversed( oldB, B ) #  sets the new board correctly



Be sure to import time, as noted above the function. The while loop here will run forever - or until you hit control-c and will continue to display reversing boards as it goes.

Adding some user input

For debugging and increased user control it will be important to allow the user to specify which cells are on and which are off at the beginning of the simulation. To allow this control, copy and paste the following code at the end of your hw5pr1.py file.

def life( width, height ):

""" will become John Conway's Game of Life... """

B = createBoard( width, height )

csplot.showAndClickInIdle(B)



while True: # run forever

csplot.show(B)   # show current B

time.sleep(0.25) # pause a bit

oldB = B #  just a reminder for us humans

B = createBoard(width, height) # creates a new board

updateReversed( oldB, B ) # sets the new board correctly



Here's what should happen when you run this function (e.g. by calling life(10, 10)). You will see a blank 10x10 grid appear, but this grid will not update automatically as before. Instead, you should click on the display window so that it is the current top window. Then, hold down the s key and click inside one or more of the cells in the display. You should see those cells change from live to empty and vice-versa. Once you're ready, close the display window, and you will see another display window appear, starting with the board that you created by clicking (NOT the original blank board) and automatically updating as before.

The Game of Life

So, for this step, change your life function so that it calls a new function named updateNextLife( oldB, newB ) in place of updateReversed, above. Then, implement the updateNextLife( oldB, newB ) function so that it sets each cell in the new data according to the updating rules based on the old generation, oldB:

  1. A cell that has fewer than two live neighbors dies (because of loneliness)
  2. A cell that has more than 3 live neighbors dies (because of over-crowding)
  3. A cell that is dead and has exactly 3 live neighbors comes to life
  4. All other cells maintain their state

As suggested in updateReversed, always keep all of the outer-edge cells empty. This is simply a matter of limiting your loops to an appropriate range. However, it greatly simplifies the four update rules, above, because it means that you will only update the interior cells, all of which have a full set of eight neighbors. You may want to write a helper function, countNeighbors for example, for determining the number of live neighbors for a cell in the board at a particular row and col.

Warnings/hints: there are a few things to keep in mind:

  1. Count neighbors only in the old generation oldB. Change only the new generation, newB.
  2. Be sure to set every value of newB (the new data), whether or not it differs from oldB.
  3. A cell is NOT a neighbor of itself.
  4. A 2x2 square of cells is statically stable (if isolated) - you might try it on a small grid for testing purposes
  5. A 3x1 line of cells oscillates with period 2 (if isolated) - also a good pattern to test.

Once your Game of Life is working, look for some of the other common patterns, e.g., other statically stable forms ("rocks"), as well as oscillators ("plants") and others that will move across the screen, known as gliders ("animals/birds").



Optional Extensions

Adding pause/resume (or other user options) [Up to +5 points]

For this optional extension, you can no longer run your code from within IDLE for reasons that are too complicated to explain here. Instead you will need to run python from the command line (e.g., the Terminal, or Shell). Here's how to do this:

Open a terminal window and change your directory to the location where csplot.py and hw5pr1.py are located. Here are brief instructions for PCs and Macs:

Please ask if you run into any problems with this!

Between runs if you make any changes to your code you will need to reload it into python. The easiest way to do this is to follow these instructions:

Easy ways to exit and reload your Python program: Mac and PC    To leave the python shell, use the shortcuts: control-d on Macs and control-z then enter on PCs. Alternatively, you can type quit() on either system. Then, in order to reload your new hw5pr1.py file, hit the up-arrow key and hit return. That's it!

Now, onto the extensions...

There is a function in csplot named csplot.getKeysDown() that returns a string with the keys being pressed. In fact, the keys have to be pressed when the focus is on the drawing window -- it's only possible to get that kind of keyboard information from the graphics system (and not the Python shell).

You can use this function in order to set a boolean variable that determines whether or not to run the updating step or to pause it or step it by only one generation. Something like this:

if pause == False:

    B = createNextLifeBoard( oldB )



where the boolean value pause starts at False, but can be changed as follows:

keysList = csplot.getKeysDown()

if 'p' in keysList:   pause = True



Warning: do not write another loop inside of the main while loop. What may happen is that the code will get caught in the inner loop and never escape. Or, the inner loop will call nothing except csplot.getKeysDown(), which floods the I/O system with too many calls and causes Python to hang.

So, be sure to keep the csplot.show(B) line and the time.sleep line within your constantly-running while loop -- otherwise, the loop will run too fast, and the calls to csplot.getKeysDown can not keep up.

Try implementing these four key-presses:

·         'p' in order to pause the generation-updating.

·         'r' in order to resume the generation-updating.

·         'q' in order to quit the main while loop (and the program).

·         '1' in order to advance only 1 generation and then pause.



There might be other options you'd like to add for different keys -- for example, you might have a color-swapping key or a key that randomly adds live cells to keep things moving... . Try at least the four keys listed above -- add others as you see fit... .

Variations on the game of life [up to +5 points e.c.]

Finally, you can choose to implement one of two variations on the game of life.

Variation One: the doughnut    For this variation, remove the margin of empty cells around the board. In this case, the board should have the topology of a doughnut -- so that the left and right edges of the board become neighbors, as do the top and bottom edges. This makes neighbor-counting and avoiding out-of-bounds errors trickier. Yet with a single function that "looks up" the actual location of any given row and col coordinates, it's not too bad.

Variation Two: alien life    Life is considered a 23/3 cellular automaton, because cells survive with 2 or 3 neighbors (the two digits before the slash) and they are born with 3 neighbors (the digit after the slash). Many (perhaps all) of the other survival/birth possibilities have been studied, as well. Some even have names: for example, 1358/357 is called "Amoeba" and 1/1 is called "Gnarl." For this variation on life, choose a different set of survival/birth rules, perhaps from this reference of them and implement a key that switches between John Conway's Game of Life and your chosen set of rules (with another key to go back).



If you have gotten to this point, you have completed Lab 5! You should submit your hw5pr1.py file at Canvas .
