This problem explores a simple "robot," named
"picobot," whose goal is to completely traverse its environment.
Picobot starts at a random location in a room --
you don't have control over Picobot's initial location. The walls of the room
are blue; picobot is green, and the empty area is white. Each time picobot
takes a step, it leaves a grey trail behind it. When Picobot has completely
explored its environment, it stops automatically.
Not surprisingly, picobot has limited sensing power. It
can only sense its surroundings immediately to the north, east, west, and south
of it. For example,

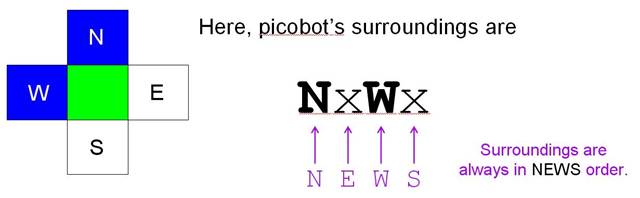

In the above image, Picobot sees a wall to the north and
west and it sees nothing to the west or south. This set of surroundings would
be represented as follows:
NxWx
The four squares surrounding picobot are always
considered in NEWS order: an x
represents empty space, the appropriate direction letter (N, E,
W, and S) represents a wall blocking that

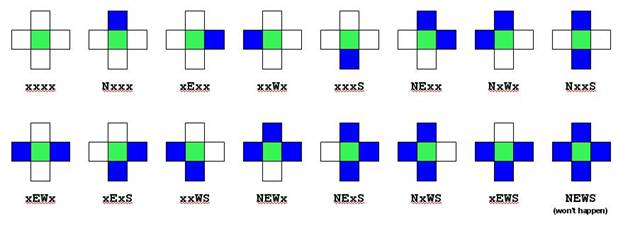

direction. Here are all of the possible picobot surroundings:
Picobot's memory is also limited. In fact, it has only a
single value from 0 to 99 available to it. This number is called picobot's state.
In general, "state" refers to the relevant context in which
computation takes place. Here, you might think of each "state" as one
piece -- or behavior -- that the robot uses to achieve its overall goal.
Picobot always begins in state 0.
The state and the surroundings are all the information
that picobot has available to make its decisions!
Picobot moves according to a set of rules of the form
StateNow Surroundings -> MoveDirection NewState
For example,
0 xxxS -> N 0
is
a rule that says "if picobot starts in state 0 and sees the
surroundings xxxS, it
should move North
and stay in state 0."
The MoveDirection
can
be N, E, W, S, or X, representing the direction
to move or, in the case of X, the
choice not to move at all.
If this were picobot's only rule and if picobot began (in
state 0) at the bottom of an
empty room, it would move up (north) one square and stay in state 0. However,
picobot would not move any further, because its surroundings would have
changed to xxxx,
which does not match the rule above.
The asterisk *
can
be used inside surroundings to mean "I don't care whether there is a wall
or not in that position." For example, xE** means "there is no wall North, there is
a wall to the East, and there may or may not be a wall to the West or
South."
As an example, the rule
0 x*** -> N 0
is
a rule that says "if picobot starts in state 0 and sees any surroundings without
a wall to the North, it should move North
and stay in state 0."
If this new version (with wildcard asterisks) were
picobot's only rule and if picobot began (in state 0)
at the bottom of an empty room, it would first see surroundings xxxS. These match the above rule,
so picobot would move North and
stay in state 0. Then, its surroundings would
be xxxx. These also
match the above rule, so picobot would again move North
and stay in state 0. In fact, this process would
continue until it hit the "top" of the room, when the surroundings Nxxx no longer match the above rule.
Comments
Anything after the pound sign (#) on a line is a
comment (as in python). Comments are human-readable explanations of what is
going on, but ignored by picobot. Blank lines are ignored as well.
Consider the following set of rules:
# state 0 goes N as far as possible
0 x*** -> N 0 # if there's
nothing to the N, go N
0 N*** -> X 1 # if N is
blocked, switch to state 1
# state 1 goes S as far as possible
1 ***x -> S 1 # if there's
nothing to the S, go S
1 ***S -> X 0 # otherwise,
switch to state 0
Recall that picobot always starts in state 0. Picobot now
consults the rules from top to bottom until it finds the first rule that applies.
It uses that rule to make its move and enter its next state. It then starts all over again, looking at the rules and
finding the first one from the top that applies.
In this case, picobot will follow the first rule up to
the "top" of its environment, moving north and staying in state 0 the whole time. Eventually, it
encounters a wall to its north. At this point, the topmost rule no longer
applies. However, the next rule "0 N*** -> X 1" does apply now! So, picobot
uses this rule which causes it to stay put (due to the "X") and switch
to state 1.
Now that it is in state 1, neither of the
first two rules will apply. Picobot follows state 1's rules, which guide it back to the
"bottom" of its environment. And so it continues... .
Installing
picobot
For this assignment, your
task is to design two different sets of picobot rules:
0
// this indicates the map we want to start with
to
2
// this indicates the map we want to start with
By
clicking twice at picobot.jar file,
you will see a connected maze indicated above. Your
task is to generate a new PicobotRules.txt file to navigate a
connected maze.
o
Once you are done, rename the PicobotRules.txt
file
to hw0pr4.txt and submit it in the usual way.
Remember that your solutions must work from arbitrary starting positions within
the environment.
